Residential Anodized Metal Roof Solar Mounting System Aluminum Standing Seam Clamps

Basic Information
Place of Origin: Jiangsu, China
Brand Name: LP SOLAR
Certification: ISO 9001, AS1170
Model Number: MRA2-HSM 03
Minimum Order Quantity: 3KW
Price: Negotiable
Packaging Details: Carton or pallet
Delivery Time: 5~15 days
Payment Terms: L/C, T/T
Supply Ability: 30 Megawatts per month
Detail Information
Name: Seam Metal Roof Mounting System Application: Residential/Commercial
Material: High Grade Aluminum And A2-70 Hardware Surface Treatment: Anodized
Place Of Origin: Jiangsu, China Warranty: 10 Years
High Light:

Residential Metal Roof Solar Mounting System CPT

,

Anodized Metal Roof Solar Mounting System CPT

,

aluminum standing seam solar clamps CPT


Product Description

Standing Seam Metal Roof Mount system Tin Roof Commercial solar photovoltaic system


Standing seam metal roofs have a smooth, modern design. They're flat except for the long, vertical standing seams that run up and down the roof, and can come in a variety of colors. Corrugated metal roofs are wavy and will have exposed fasteners. They can also come in a variety of colors.

Standing seam metal roofing doesn't rely on exposed screws or nails to attached to a building but rather uses a clip that fits over the top of the male leg of the standing seam metal. The clip gets screwed down to the roof and holding the metal roofing panel in place. It also means there is no risk of leakage.



So are standing seam metal roofs will be noisy when it rains and hails? The Answer is no they aren't any noisier than other types of roofing.



There are many shapes of standing seam metal roof on the market, different shapes will need different matched clamps.LP SOLAR engineer team can offer different solutions for your Standing seam roof according to your detail roof situation and detail requirements.


We respect roofs!


Technical Data

Product Name
 Standing Seam Metal Roof Mounting system
Application  Standing seam metal roofs
Material
 High grade aluminum and A2-70 hardware
Wind Load
 Max 88 M/S
Snow Load
 Max 1.5 KN/M²
Applicable Module
 Framed or Frameless
Module Orientation
 Portrait or Landscape
Standard
 JISC8955:2017,GB50009-2012,GB50797-2012
Dimensions
 Customized
Warranty
 10 Years
Work life  25 Years


























Installation steps

1. Seamclamp installation 2. Rail installation 3. Panel installation
Residential Anodized Metal Roof Solar Mounting System Aluminum Standing Seam Clamps 0 Residential Anodized Metal Roof Solar Mounting System Aluminum Standing Seam Clamps 1 Residential Anodized Metal Roof Solar Mounting System Aluminum Standing Seam Clamps 2




















Metal Roof Mount System Components

Photo Item No Name Product type Product line

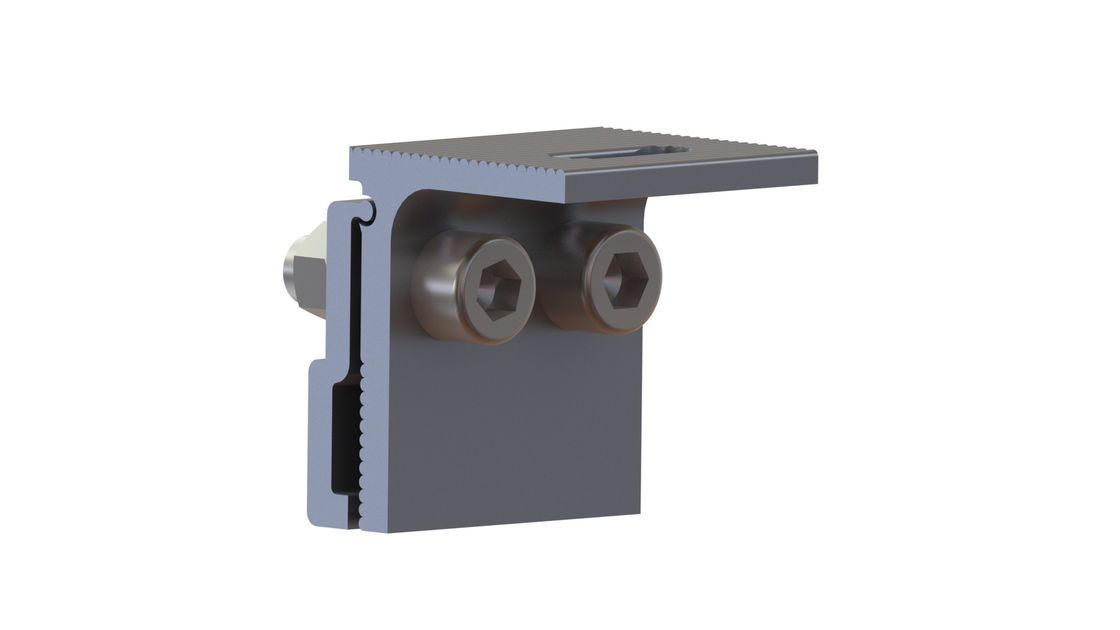

Residential Anodized Metal Roof Solar Mounting System Aluminum Standing Seam Clamps 3

HSM05

 Seam clamp

Clamps

MRA2

Residential Anodized Metal Roof Solar Mounting System Aluminum Standing Seam Clamps 4

H4L0000A

Rail 50

Racking

MRA

Residential Anodized Metal Roof Solar Mounting System Aluminum Standing Seam Clamps 5

HAC03

Rail 50 joiner

Racking

MRA

Residential Anodized Metal Roof Solar Mounting System Aluminum Standing Seam Clamps 6

A735

Mid clamp

Racking

All

Residential Anodized Metal Roof Solar Mounting System Aluminum Standing Seam Clamps 7

A835

End clamp

Racking

All

Residential Anodized Metal Roof Solar Mounting System Aluminum Standing Seam Clamps 8

H6WL0000S

Earthing plate

Earthing

MRA

Residential Anodized Metal Roof Solar Mounting System Aluminum Standing Seam Clamps 9

ED02

Earthing lug

Earthing

MRA
