Commercial 88m/S Metal Roof Solar Clamps Photovoltaic Tin Roof Mount

Basic Information
Place of Origin: Jiangsu, China
Brand Name: LP SOLAR
Certification: ISO 9001, AS1170
Model Number: MRA2
Minimum Order Quantity: 3KW
Price: Negotiable
Packaging Details: Carton or pallet
Delivery Time: 5~15 days
Payment Terms: L/C, T/T
Supply Ability: 30 Megawatts per month
Detail Information
Name: Metal Roof Mounting System Material: High Grade Aluminum And A2-70 Hardware
Place Of Origin: Jiangsu, China Warranty: 10 Years
Certificate: ISO 9001, AS1170 Wind Load: 88m/s
Snow Load: 1.5KN/m2
High Light:

Commercial metal roof solar clamps CPT

,

88m/s metal roof solar clamps

,

photovoltaic tin roof mount CPT


Product Description

Metal Roof Mount system Tin Roof Commercial solar photovoltaic system

A metal roof is a roofing system made from metal pieces by its high resistance, impermeability and longevity. There are normally 5 Types of Metal Roofing Materials on the market:

  • Copper — Extremely long-lasting, very soft with low melting temperature
  • Aluminum — Long-lasting, resistant to salt water corrosion
  • Zinc — Extremely long-lasting, resistant to corrosion and lowest melting point
  • Steel — Three variations: galvanized, galvalume, and weathering steel (Corten)
  • Tin — Often referring to steel, used prior to World War II. No longer commonly applied.

And according to different shapes, Metal Roofing can also be another 5 types as following:

  • Corrugated Metal Roofing- Exposed fastener panel.
  • Standing Seam Roofing- Concealed fastener panel.
  • Metal Shingle Roofing- Metal roofing with a traditional look.
  • Metal Slate Roofing- Affordable alternative to slate.
  • Metal Tile Roofing- Affordable alternative to clay tile.

In view of this situation, LP SOLAR designed and developed a variety of rooftop accessories of different styles and types, which can match most roof types on the market and with zero penetration to your roofs.

Most clamps are made from high-tensile aluminum. All fasteners and mating hardware are A2-70 stainless steel. Our roof clamps are metallurgically compatible with most of common roof materials including titanium-zinc, stainless steel, aluminum, zinc, galvanized steel and 55% AlZn coated steel and so on.

We respect roofs!


Technical Data

Product Name
 Metal Roof Mounting system
Application  All kinds of metal roofs
Material
 High grade aluminum and A2-70 hardware
Wind Load
  Max 88 M/S
Snow Load
 Max 1.5 KN/M²
Applicable Module
 Framed or Frameless
Module Orientation
 Portrait or Landscape
Standard
 JISC8955:2017,GB50009-2012,GB50797-2012
Dimensions
 Customized
Warranty
 10 Years
Work life  25 Years














Installation steps

1. Clamp installation 2. Rail installation 3. Panel installation
Commercial 88m/S Metal Roof Solar Clamps Photovoltaic Tin Roof Mount 0 Commercial 88m/S Metal Roof Solar Clamps Photovoltaic Tin Roof Mount 1 Commercial 88m/S Metal Roof Solar Clamps Photovoltaic Tin Roof Mount 2











Metal Roof Mount System Components

Photo Item No Name Product type Product line

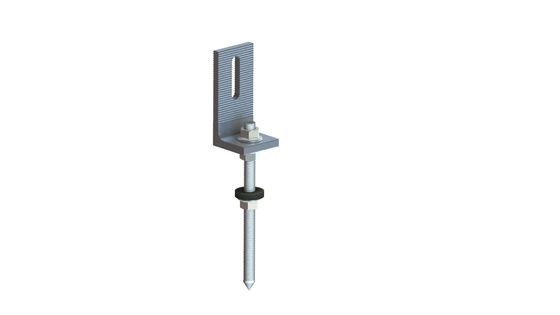

Commercial 88m/S Metal Roof Solar Clamps Photovoltaic Tin Roof Mount 3

HAS40

L-feet

Clamps

MRA2

Commercial 88m/S Metal Roof Solar Clamps Photovoltaic Tin Roof Mount 4

49L0000A

Rail 50

Racking

MRA

Commercial 88m/S Metal Roof Solar Clamps Photovoltaic Tin Roof Mount 5

AC02

Rail 50 joiner

Racking

MRA

Commercial 88m/S Metal Roof Solar Clamps Photovoltaic Tin Roof Mount 6

A735

Mid clamp

Racking

All

Commercial 88m/S Metal Roof Solar Clamps Photovoltaic Tin Roof Mount 7

A835

End clamp

Racking

All

Commercial 88m/S Metal Roof Solar Clamps Photovoltaic Tin Roof Mount 8

H6WL0000S

Earthing plate

Earthing

MRA

Commercial 88m/S Metal Roof Solar Clamps Photovoltaic Tin Roof Mount 9

ED02

Earthing lug

Earthing

MRA
