3 Column High Grade Aluminium Structure For Solar Panels Frameless Ground Mounted PV Systems

Basic Information
Place of Origin: Jiangsu, China
Brand Name: LP SOLAR
Certification: ISO 9001, ANS1170
Model Number: MGA-3xN
Minimum Order Quantity: 50KW
Price: Negotiable
Packaging Details: Carton or pallet
Delivery Time: 10~20 days
Payment Terms: L/C, T/T
Supply Ability: 20 Megawatts per month
Detail Information
Name: 3xN Aluminum Ground Mount System Material: High Grade Aluminum And A2-70 Hardware
Place Of Origin: Jiangsu, China Certificate: ISO 9001, ANS1170
Warranty: 10 Years Service Life: 25 Years
High Light:

3 column aluminium structure for solar panels

,

High grade aluminium structure for solar panels

,

Frameless ground mounted pv systems


Product Description

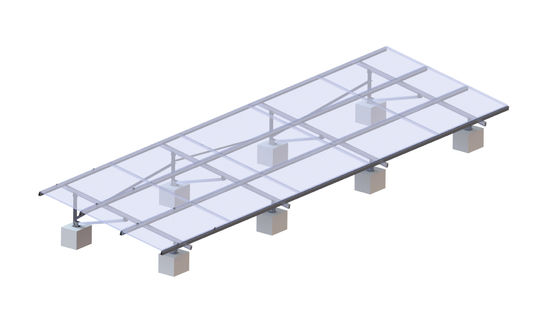

3xN Aluminum Ground Mounting System Solar Power Station Solar Photovoltaic System


Referring to many cases of photovoltaic projects, the general arrangement of modules is divided into 2xN vertical array or 4xN horizontal array, which are the most economical in terms of material and land.



However, since the output of the photovoltaic array is directly followed by the photovoltaic grid connected inverter, the design of the photovoltaic array should also fully consider the adaptation with the inverter. Sometimes 3xN or other combinations will appear. In general, when EPC designs the photovoltaic array, in order to make the array output as much energy as possible, it is necessary to make the photovoltaic module obtain enough radiation energy as much as possible. Therefore, it is necessary to consider the azimuth angle and inclination angle of the photovoltaic array. Since the total area of the open space (including the roof) is limited, it is necessary to properly consider reducing the floor area of the photovoltaic array as much as possible on the premise of obtaining a reasonable output of total energy.



Compared with the 4xN array, the cost performance of the 3XN array is not particularly high, but when the site is limited, considering that the shadow area is as small as possible and the installed capacity is as large as possible, then the 3XN array is also a good choice. Therefore, we should not make subjective comments on which layout is better, but should choose the most appropriate one according to the actual situation.


Technical Data

Product Name
 3xN Aluminum Ground Mounting system
Application  Flat land or flat roof
Material
 High grade aluminum and A2-70 hardware
Wind Load
 88 M/S
Snow Load
 2.0 KN/M²
Applicable Module
 Framed or Frameless
Module Orientation
 Portrait or Landscape
Standard
 JISC8955:2017, GB50009-2012, GB50797-2012
Dimensions
 Customized
Warranty
 10 Years
Work life  25 Years



























Aluminum Ground Mount System Components

Photo Item No Name Product type Product line
3 Column High Grade Aluminium Structure For Solar Panels Frameless Ground Mounted PV Systems 0

G000300F/R

 Column unit

 Racking

 MGA

3 Column High Grade Aluminium Structure For Solar Panels Frameless Ground Mounted PV Systems 1

 E3801440A3

 Beam unit

 Racking

 MGAS II

3 Column High Grade Aluminium Structure For Solar Panels Frameless Ground Mounted PV Systems 2

 44L3550A

 Rail

 Racking

 MGA

3 Column High Grade Aluminium Structure For Solar Panels Frameless Ground Mounted PV Systems 3

 5ZL2750A

 Rear tie

 Racking

 MGA

3 Column High Grade Aluminium Structure For Solar Panels Frameless Ground Mounted PV Systems 4

A351

 Clip

 Racking

 MGA

3 Column High Grade Aluminium Structure For Solar Panels Frameless Ground Mounted PV Systems 5

 A735

 End clamp

 Racking

 ALL

3 Column High Grade Aluminium Structure For Solar Panels Frameless Ground Mounted PV Systems 6

 A835

 Mid clamp

 Racking

 ALL
