Concrete Ground Aluminium Solar Mounting Structure 88m/S PV Systems

Description
Name: Aluminum Ground Mount System Material: High Grade Aluminum And A2-70 Hardware
Installation Site: Ground/Flat Concrete Roof Place Of Origin: Jiangsu, China
Warranty: 10 Years Certificate: ISO 9001, ANS1170
High Light:

ground Aluminium Solar Mounting Structure

,

Concrete Aluminium Solar Mounting Structure

,

88m s pv mounting systems

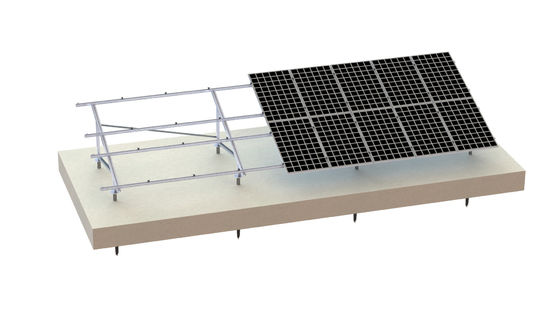

Aluminum Ground Mounting System Solar Power Station Solar Photovoltaic System


Aluminum Ground Mount System has various types according to the condition of certain site place and customers' special requirements. Pre-installed has been arranged before leaving the factory, so it is easy to install and can save labor cost on site.



The main material of the system is high-strength aluminum, and bolts are all stainless-steel, so the anti-corrosion and self-recovery effect is very good, especially suit for island countries, such as Japan, Philippines.



The aluminum ground mount structure can match different base, for example ground screw, pile or concrete foundation. It also can used on flat ground or little slop ground. The array can be placed 2*n vertically, 3*n, 4*n horizontally, or larger arrays can also be done, but the difficulty of construction also needs to be considered when selecting the array. If the height of the upper end of the module is particularly high, the construction on site will be very difficult. The selection of span depends on the parameters of wind load and snow load of the project site. Through calculation, we can get the number of foundations. Of course, in the process of design, we also need to consider the situation of land as much as possible. If the customer can provide soil report and foundation test report, LP SOLAR engineer team can provide a more accurate design.

Technical Data

Product Name
 Aluminum Ground Mounting system
Application  Flat land or flat roof
Material
 High grade aluminum and A2-70 hardware
Wind Load
 88 M/S
Snow Load
 2.0 KN/M²
Applicable Module
 Framed or Frameless
Module Orientation
 Portrait or Landscape
Standard
 JISC8955:2017, GB50009-2012, GB50797-2012
Dimensions
 Customized
Warranty
 10 Years
Work life  25 Years


























Installation steps

1. Pile installation 2. Foudation installation 3. Beam installation
