Folding Tripod Flat Roof Solar Racking Systems Windshield Mount

Folding Tripod Flat Roof Solar Racking Systems Windshield Mount
Folding Tripod Flat Roof Solar Racking Systems Windshield Mount Folding Tripod Flat Roof Solar Racking Systems Windshield Mount Folding Tripod Flat Roof Solar Racking Systems Windshield Mount

Large Image :  Folding Tripod Flat Roof Solar Racking Systems Windshield Mount

Product Details:
Place of Origin: Jiangsu, China
Brand Name: LP SOLAR
Certification: ISO 9001
Model Number: MRA3
Payment & Shipping Terms:
Minimum Order Quantity: 500 KW
Price: Negotiable
Packaging Details: Carton or pallet
Delivery Time: 7~15 days
Payment Terms: L/C, T/T
Supply Ability: 50 Megawatts per month

Folding Tripod Flat Roof Solar Racking Systems Windshield Mount

Description
Name: Solar Panel Tripod Mount PV Mounting System With Windshield Application: Commercial
Material: AL6005-T5 And SUS304 Place Of Origin: Jiangsu, China
Warranty: 10 Years Service Life: 25 Years
High Light:

folding flat roof solar racking systems

,

tripod flat roof solar racking systems

,

windshield flat roof solar mount

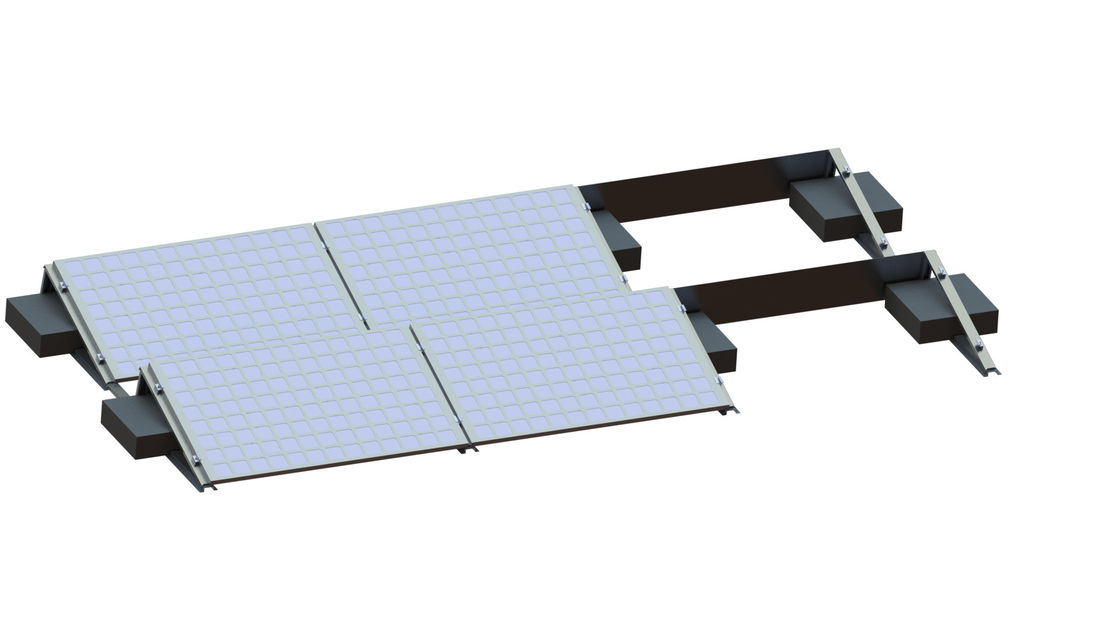

Solar Panel Tripod Mount PV Mounting System With Windshield Folding Tripod Structure



Ballast tripod mounting system is designed for solar energy installation on concrete flat roof. The tilt angle can be customized between 5 ° to 30 ° according to each item. The system is based on concrete foundation and is also suitable for ground mounted solar energy.



Ballast tripod mounting system uses concrete blocks as footings for solar panel supports. It is used for flat roofs with high parapets and has enough space for solar modules. The footing or concrete base is directly on the roof without any penetration. The main purpose of the concrete base is to ensure that the shelf system remains intact even during the storm season. It ensures good installation and does not cause water leakage on the roof. It also improves the solar module and reduces the shading effect of the high parapet.



The design of the rear windshield can make the wind resistance of the whole structure stronger, and the aesthetics can be greatly improved. The wind shield is fixed with the tripod instead of directly fixed on the frame of the module, which makes the adaptability of the module stronger, and will not damage the frame of the module and affect the safety of the modules.



As a PV enterprise, Lipu Metal has been focusing on the R&D, production and sales of solar mounting system and PV frames. Due to Lipu Metal has a professional design and development team, so it has obtained nearly 17 domestic and foreign product patents so far. Professional production and QC team, which is strictly controlling the quality from raw materials to finished products accordance with the ISO9001 international quality system standards.

Lipu Metal can not only produce conventional PV mounting system products and accessories, but also can offer the design which will meet the customized needs. According to the situation of different projects, Lipu Metal will provide matched mounting system solutions. From the beginning of purchasing from Lipu Metal, customers can enjoy a series of supporting services, including field investigation, measurement & calculation, design, installation support and after-sales service.



Technical Data

Product Name
 Folding Tripod Structure With Windshield
Application  All kinds of flat roofs
Material
 AL6005-T5 and A2-70 hardware
Wind Load
 40 M/S
Snow Load
 0.8 KN/M²
Applicable Module
 Framed or Frameless
Module Orientation
 Portrait or Landscape
Standard
 JISC8955:2017, GB50009-2012, GB50797-2012
Dimensions
 Customized
Warranty
 10 Years
Work life  25 Years



























Project reference

 Folding Tripod Flat Roof Solar Racking Systems Windshield Mount 0Folding Tripod Flat Roof Solar Racking Systems Windshield Mount 1
