10 Degree Flat Roof Solar Mounting System Photovoltaic Framed Ballast Panel

Basic Information
Place of Origin: Jiangsu, China
Brand Name: LP SOLAR
Certification: ISO 9001
Model Number: MRA3-10°
Minimum Order Quantity: 1000KW
Price: Negotiable
Packaging Details: Carton or pallet
Delivery Time: 7~15 days
Payment Terms: L/C, T/T
Supply Ability: 50 Megawatts per month
Detail Information
Name: 10° Flat Roof Mounting System Application: Residential/Commercial
Material: High Grade Aluminum And A2-70 Hardware Place Of Origin: Jiangsu, China
Warranty: 10 Years Certificate: ISO 9001
High Light:

10 degree Flat Roof Solar Mounting System

,

Photovoltaic Flat Roof Solar Mounting System

,

framed ballast solar panel mounting


Product Description

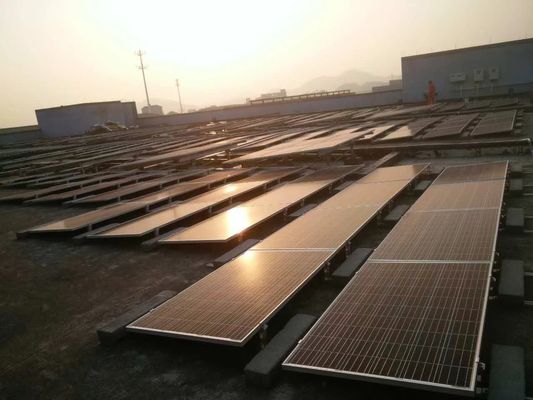

10° Flat Roof Mount System Ballast Mount Commercial Solar Photovoltaic System



Ballast mounting system no need rails, only adopts front leg, mid leg and rear leg to save cost both on installation and transportation. It is a type of solar panel mounting structure that can be expanded from one panel to any scale to maximize the use of flat rooftop. LP SOLAR engineer team will give you a technical suggestion for the size and weight of ballasts for your solar project.



FAQ

1. What is your PV modules dimension (Length x Width x Thickness)?

2. How many modules you are going to mount?

3. What is your planned panel layout?

4. What is the tilt angle you need? If you can’t sure, please offer your site’s longitude and latitude.

5. What is max wind speed in the past 25 years?

6. What is max snow load in the past 25 year?

7. Do you have any special requirement on flat roof clearance?

8. Whether you know the roof bearing per square meter? If yes, please offer the datas.



Please don’t hesitate to let us know if you have any requirements about the solar mounting system. LP SOLAR will provide appropriate solutions according to your specific requirements.



As a PV enterprise, Lipu Metal has been focusing on the R&D, production and sales of solar mounting system and PV frames. Due to Lipu Metal has a professional design and development team, so it has obtained nearly 17 domestic and foreign product patents so far. Professional production and QC team, which is strictly controlling the quality from raw materials to finished products accordance with the ISO9001 international quality system standards.

Lipu Metal can not only produce conventional PV mounting system products and accessories, but also can offer the design which will meet the customized needs. According to the situation of different projects, Lipu Metal will provide matched mounting system solutions. From the beginning of purchasing from Lipu Metal, customers can enjoy a series of supporting services, including field investigation, measurement & calculation, design, installation support and after-sales service.



We respect roofs!



Technical Data

Product Name
10° Flat Roof Mounting system
Application  All kinds of flat roofs
Material
 High grade aluminum or galvanized steel and A2-70 hardware
Wind Load
 60 M/S
Snow Load
 1.2 KN/M²
Applicable Module
 Framed or Frameless
Module Orientation
 Portrait or Landscape
Standard
 JISC8955:2017, GB50009-2012, GB50797-2012
Dimensions
 Customized
Warranty
 10 Years
Work life  25 Years



























Installation steps

10 degree Front leg installation 10 degree Mid leg installation Complete
10 Degree Flat Roof Solar Mounting System Photovoltaic Framed Ballast Panel 0 10 Degree Flat Roof Solar Mounting System Photovoltaic Framed Ballast Panel 1 10 Degree Flat Roof Solar Mounting System Photovoltaic Framed Ballast Panel 2



















Flat Roof Mount System Components

Photo Item No Name Product type Product line
10 Degree Flat Roof Solar Mounting System Photovoltaic Framed Ballast Panel 3

CRA10F

10° Front support

Racking

MRA3

10 Degree Flat Roof Solar Mounting System Photovoltaic Framed Ballast Panel 4

CRA10M

10° Mid support

Racking

MRA3

10 Degree Flat Roof Solar Mounting System Photovoltaic Framed Ballast Panel 5

CRA10R

10° Rear support

Racking

MRA3

10 Degree Flat Roof Solar Mounting System Photovoltaic Framed Ballast Panel 6

A351

Clip

Racking

MRA3

10 Degree Flat Roof Solar Mounting System Photovoltaic Framed Ballast Panel 7

B735

End clamp

Racking

ALL
