Triangle Photovoltaic Metal Roof Clamps For Solar Panels 60m/S Corrugated

Basic Information
Place of Origin: Jiangsu, China
Brand Name: LP SOLAR
Certification: ISO 9001, AS1170
Model Number: MGA2A1
Minimum Order Quantity: 50KW
Price: Negotiable
Packaging Details: Carton or pallet
Delivery Time: 5~15 days
Payment Terms: L/C, T/T
Supply Ability: 20 Megawatts per month
Detail Information
Name: Triangle Metal Roof Mounting System Application: Metal Roof
Type: Triangle Aluminum Support Place Of Origin: Jiangsu, China
Warranty: 10 Years Service Life: 25 Years
High Light:

CPT triangle metal roof clamps for solar panels

,

CPT photovoltaic metal roof clamps for solar panels

,

CPT 60m s corrugated metal roof solar mount


Product Description

Triangle Metal Roof Mount system Tin Roof Commercial solar photovoltaic system



Triangle Metal roof solar mounting system is one of LP SOLAR roof structure, roof clamp and triangle support installation is quick and convenient, reliable and firm, suitable for any complex module layout of the roof. If you want the panel can receive more sunlight, so as to improve the power generation of the power station, you can choose this type. It can be used on the South roof to get the best angle in the Northern Hemisphere, and it can also be used on the roof not face to sun to increase the total capacity and power generation of the entire roof. The triangles stabilize the strength of the structure, and the aluminum material has a very high anti-corrosion ability in harsh environment and the high strength of the material ensures the anti-load capacity of the structure. At the same time, we also will consider the waterproof reinforcement measures to prevent the roof from leaking caused by rain. The overall weight of the structure is very light and will not cause excessive load on the roof.



The angle of the structure can be customized from 5 degree to 45 degree, if you do not know what is the best angle of your project, you can provide us with the longitude and latitude of the project site, and then we will give you a suitable solution after checking with the software.



Technical Data

Product Name
 Triangle Mount
Application  Metal roof
Material
 High grade aluminum and A2-70 hardware
Wind Load
 60 M/S
Snow Load
 1.0 KN/M²
Applicable Module
 Framed or Frameless
Module Orientation
 Portrait or Landscape
Standard
 JISC8955:2017,GB50009-2012,GB50797-2012
Dimensions
 Customized
Warranty
 10 Years
Work life  25 Years

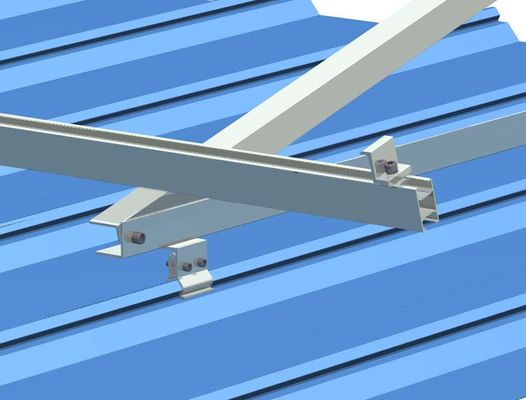

Partial enlarged details

Triangle Photovoltaic Metal Roof Clamps For Solar Panels 60m/S Corrugated 0 Triangle Photovoltaic Metal Roof Clamps For Solar Panels 60m/S Corrugated 1 Triangle Photovoltaic Metal Roof Clamps For Solar Panels 60m/S Corrugated 2
