Male Female Solar Panel Wire Connector , MC4 Photovoltaic Connector

Basic Information
Place of Origin: Jiangsu, China
Brand Name: LP SOLAR
Certification: ISO 9001, ISO 14001, IEC, CE, TUV
Model Number: MC4
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: Carton or pallet
Delivery Time: 5~15 days
Payment Terms: L/C, T/T
Supply Ability: 10000 Box/Boxes per Month
Detail Information
Name: MC4 Photovoltaic Connector Protection Class: IP67
Wiring Specification: 4mmsq/6mmsq Temperature Range: -40°C~+90°C
Contact Resistance: ≤0.5mΩ Insulation Material: PC/PA
High Light:

female solar panel wire connector

,

male solar panel wire connector

,

MC4 photovoltaic connector


Product Description

Photovoltaic Connector MC4 Solar Male And Female Plug MC4 Connector Solar Panel Photovoltaic Module Wire Connector



Photovoltaic connector, also known as MC4, is mainly used to realize rapid connection between junction box, combiner box, modules and inverter. In the photovoltaic system, the proportion of photovoltaic connectors is very small. However, if we do not pay attention to the selection, processing and compatibility, it is easy to fail. According to statistics, among various failures of the power station, the loss of power generation caused by connector damage or burning ranks second.



Caution:

  • During your self- installation, if the used part and tool are not ruled by our or if you ignore preparation and operation, we won’t ensure the safety compatible of the product technology your self-installation.
  • For protecting against electric shock, please cut off the power when installing PV connector.
  • The final products must be supplied with the function electric shock proof.
  • In the case of load, the connector is not allowed to disconnect. In the case of charged is not allowed to pull plug.
  • H07RN cables without tinned are not recommended. Cause the contact resistance of crimping place will probably exceed the permitted value since the cooper wires are oxidized.
  • IP67 rated, they can be positioned for half an hour under 1MT of water, but they can’t be put under water for long time.
  • Some chemicals should avoid contacting with the connector body

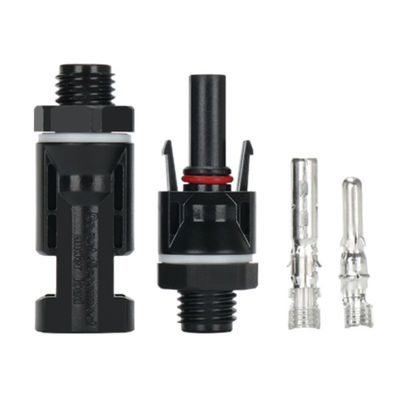

Male Female Solar Panel Wire Connector , MC4 Photovoltaic Connector 0
