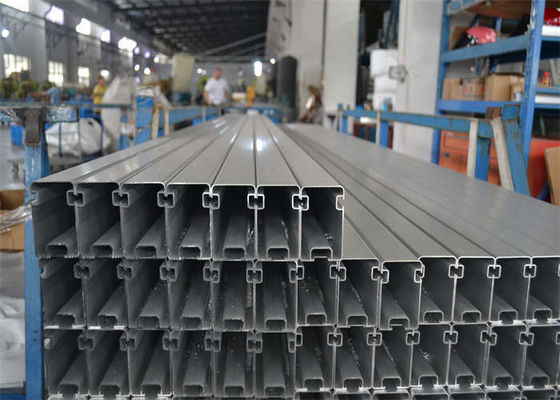

1200mm 88m/S Solar Panel Aluminium Rail Easy Install Framing System MGA4

Basic Information
Place of Origin: China
Brand Name: LP SOLAR
Certification: ISO 9001
Model Number: MGA4
Minimum Order Quantity: 50kw
Price: Negotiable
Packaging Details: Carton or pallet
Delivery Time: 5~15 days
Payment Terms: L/C, T/T
Supply Ability: 30 Megawatts per month
Detail Information
Name: Aluminum Solar Mounting System OEM: Yes
Custom: Accept Certificate: ISO 9001
Place Of Origin: Jiangsu, China Warranty: 10 Years
High Light:

CPT 1200mm solar panel aluminium rail

,

CPT 88m s solar panel aluminium rail

,

Easy install solar panel framing system lipu


Product Description

MGA4 Aluminum Solar Mounting System Solar Ground Mounting System Cement Roof Mounting System

Utility model patent 201921877539.X



According to the different materials used for the main stressed bars of photovoltaic supports, they can be divided into aluminum alloy supports, steel supports and non-metallic supports, of which non-metallic supports are rarely used, while aluminum alloy supports and steel supports have their own characteristics.



The currently recommended one is the fixed tilt angle aluminum photovoltaic mounting system. Generally, technicians will first calculate the local optimal installation angle according to site longitude and latitude, and then all arrays will be fixed and installed with this angle. Of course, when the land area is limited, in order to achieve a certain installed capacity, sometimes the best inclination will be abandoned. The power generation efficiency of the optimum inclination angle and the power generation efficiency of the non-optimum inclination angle do not have a double relationship.



According to the size of the project and the land conditions, it can be used with ground piles or concrete base as the foundation. If the ground pile is selected, the installer needs to take samples on site for pulling force test to ensure that the selected size can meet the strength requirements.



As a PV enterprise, Lipu Metal has been focusing on the R&D, production and sales of solar mounting system and PV frames. Due to Lipu Metal has a professional design and development team, so it has obtained nearly 17 domestic and foreign product patents so far. Professional production and QC team, which is strictly controlling the quality from raw materials to finished products accordance with the ISO9001 international quality system standards.


Lipu Metal can not only produce conventional PV mounting system products and accessories, but also can offer the design which will meet the customized needs. According to the situation of different projects, Lipu Metal will provide matched mounting system solutions. From the beginning of purchasing from Lipu Metal, customers can enjoy a series of supporting services, including field investigation, measurement & calculation, design, installation support and after-sales service.



Technical specification

Installation place  Cement roof or flat ground
Fixed way  Ground screw/Concrete base
Installation angle  5°~45°
Standard wind  35m/s
Max wind  88m/s
Max snow  1200mm
Design standard  JISC 8955:2017,GB 50009-2012,GB 50797-2012
Main material  AL6005-T5
Fastener material  SUS 304























Advantage
Strong compatibility

High cost performance

High-strength aluminum

Easy to install

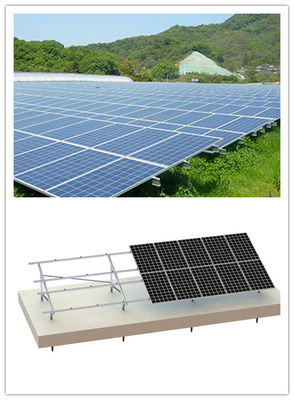

Project Photo reference

1200mm 88m/S Solar Panel Aluminium Rail Easy Install Framing System MGA4 01200mm 88m/S Solar Panel Aluminium Rail Easy Install Framing System MGA4 1



About LP Solar
• Lipu Metal (Jiangyin) Co., Ltd was previously called Leapton Metal (Suzhou) Co., Ltd before;
• November 30th, 2018, Lipu Metal (Jiangyin) established, the factory was relocated from Suzhou to Jiangyin;
• The new factory covers an area of about 21,300 square meters;
• The annual capacity of 500MW for mounting system and 500MW for aluminum frames;
• Lipu Metal has obtained 17 product patents so far.
