L Feet T Clamp Metal Roof Solar Mounting System On House MRA2-TD

Certification
China Lipu Metal(Jiangyin) Co., Ltd certification
China Lipu Metal(Jiangyin) Co., Ltd certification
I'm Online Chat Now

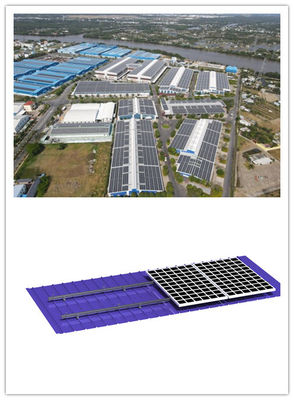

L Feet T Clamp Metal Roof Solar Mounting System On House MRA2-TD

L Feet T Clamp Metal Roof Solar Mounting System On House MRA2-TD
L Feet T Clamp Metal Roof Solar Mounting System On House MRA2-TD L Feet T Clamp Metal Roof Solar Mounting System On House MRA2-TD

Large Image :  L Feet T Clamp Metal Roof Solar Mounting System On House MRA2-TD

Product Details:
Place of Origin: China
Brand Name: LP SOLAR
Certification: ISO 9001
Model Number: MRA2-TD
Payment & Shipping Terms:
Minimum Order Quantity: 3KW
Price: Negotiable
Packaging Details: Carton or pallet
Delivery Time: 5~15 days
Payment Terms: L/C, T/T
Supply Ability: 30 Megawatts per month

L Feet T Clamp Metal Roof Solar Mounting System On House MRA2-TD

Description
Name: Metal Roof Solar Mounting System OEM: Yes
Custom: Accept Certificate: ISO 9001
Place Of Origin: Jiangsu, China Warranty: 10 Years
High Light:

L feet metal roof solar mounting system CPT

,

T clamp metal roof solar mounting system CPT

,

on house roof solar mount CPT

MRA2-TD Metal Roof Solar Mounting System Solar Panels On Houses Solar Panels On Factory



The metal roof photovoltaic power generation project belongs to the reconstruction project of the roof of existing buildings. Therefore, the roof form of buildings, the structural form of buildings, the layout form of photovoltaic arrays and the form of photovoltaic modules themselves determine the diversity of roof photovoltaic mounting system forms.



1. The form of metal roof and the structural form of buildings have a great impact on the project cost of photovoltaic supports.

2. The higher the waterproof level of the roof is, the waterproof layer of the roof will not be exposed.

3. The larger the live load of the roof, the better the overall structure of the building and the roof with strong bearing capacity, the lower the engineering cost of the photovoltaic mounting system, and conversely, the higher the engineering cost.

4. According to the structural form, roof form and bearing capacity of the original buildings with steel tiles, the actual power load and installation capacity of each workshop are considered.

5. The main layout of the metal roof project is: lay flat along the slope of the roof, use module as the layout form of the roof, and set a certain angle on the north slope to make the north slope layout consistent with the south slope.



As a PV enterprise, Lipu Metal has been focusing on the R&D, production and sales of solar mounting system and PV frames. Due to Lipu Metal has a professional design and development team, so it has obtained nearly 17 domestic and foreign product patents so far. Professional production and QC team, which is strictly controlling the quality from raw materials to finished products accordance with the ISO9001 international quality system standards.

Lipu Metal can not only produce conventional PV mounting system products and accessories, but also can offer the design which will meet the customized needs. According to the situation of different projects, Lipu Metal will provide matched mounting system solutions. From the beginning of purchasing from Lipu Metal, customers can enjoy a series of supporting services, including field investigation, measurement & calculation, design, installation support and after-sales service.



Technical specification

Installation place  T-type Tin roof
Fixed way  L-feet/ T-clamp
Installation angle  0°
Standard wind  35m/s
Max wind  88m/s
Standard snow  200mm
Max snow  800mm
Design standard  JISC 8955:2017,GB 50009-2012,GB 50797-2012
Main material  AL6005-T5
Fastener material  SUS 304

























Advantage
High-strength aluminum
Ultra light-weight design
Easy to install

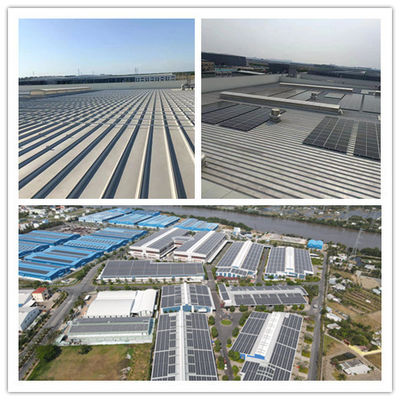

Project Photo reference

L Feet T Clamp Metal Roof Solar Mounting System On House MRA2-TD 0 L Feet T Clamp Metal Roof Solar Mounting System On House MRA2-TD 1                                                  L Feet T Clamp Metal Roof Solar Mounting System On House MRA2-TD 2 L Feet T Clamp Metal Roof Solar Mounting System On House MRA2-TD 3



About LP Solar
• Lipu Metal (Jiangyin) Co., Ltd was previously called Leapton Metal (Suzhou) Co., Ltd before;
• November 30th, 2018, Lipu Metal (Jiangyin) established, the factory was relocated from Suzhou to Jiangyin;
• The new factory covers an area of about 21,300 square meters;
• The annual capacity of 500MW for mounting system and 500MW for aluminum frames;
• Lipu Metal has obtained 17 product patents so far.


About Factory

Raw material area Material area Cutting area Producting area Sampling area
CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 1 CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 2 CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 3 CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 4 CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 5
Pre-install area Wahouse 1 Packing area Finish W.H. 2 Loading area
CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 6 CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 7 CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 8 CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 9 CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 10
















About Certification and Test
CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 11CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 12CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 13CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 14CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 15CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 16CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 17CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 18
CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 19CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 20CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 21CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 22CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 23CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 24CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 25CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 26
CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 27CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 28CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 29CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 30CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 31CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 32CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 33CPT Aluminum Solar Carport Solar Parking Lot Solar Module Mounting Structure 34
