Pile Driven HDG Steel Solar Structure 60m/S Ground Mount Racking

Basic Information
Place of Origin: Jiangsu, China
Brand Name: LP SOLAR
Certification: ISO 9001
Model Number: MGC
Minimum Order Quantity: 500KW
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 10~20 days
Payment Terms: L/C, T/T
Supply Ability: 20 Megawatts per month
Detail Information
Name: Pile-driven Steel Ground Mount System Material: Steel And A2-70 Hardware
Surface: HDG Or NSDCC Place Of Origin: Jiangsu, China
Warranty: 10 Years Work Life: 25 Years
High Light:

pile driven Steel Solar Structure

,

HDG Steel Solar Structure

,

60m/s ground mount solar racking


Product Description

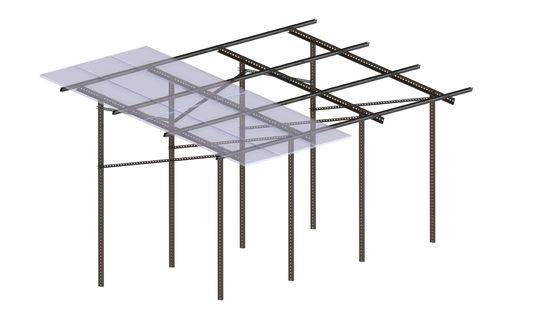

Pile-driven Steel Ground Mounting System Solar Power Station Solar Photovoltaic System



The pile-driven ground support system is used for large commercial and communal PV plants, suitable for non-fossilized soils.



In this system, C-type steel columns can be driven into the ground quickly by a pile driver for 1-2 meters, and then add the support structure, rail and clamps are directly assembled into a mounting system.



The structure is safe and reliable, which is rigorously calculated and tested to withstand the harshest weather conditions. And the structure is flexible and adjustable, LP SOLAR engineer team fully consider the installation of difficult points, ingenious design to ensure that it is flexible and adjustable, can deal with some unknown situations on site. The holes are designed so that they can be adjusted on site without the need for additional machining.



Solar mounting system is made up of a lot of standard products, LP SOLAR technical team can research and development the matching products according to your detail project requirement, therefore, if you don't know what kind of structure to choose, please don’t hesitate to let us know, we will try our best to provide you with cost-effective solutions and other services, such as OEM packing or shipping.



As a PV enterprise, Lipu Metal has been focusing on the R&D, production and sales of solar mounting system and PV frames. Due to Lipu Metal has a professional design and development team, so it has obtained nearly 17 domestic and foreign product patents so far. Professional production and QC team, which is strictly controlling the quality from raw materials to finished products accordance with the ISO9001 international quality system standards.

Lipu Metal can not only produce conventional PV mounting system products and accessories, but also can offer the design which will meet the customized needs. According to the situation of different projects, Lipu Metal will provide matched mounting system solutions. From the beginning of purchasing from Lipu Metal, customers can enjoy a series of supporting services, including field investigation, measurement & calculation, design, installation support and after-sales service.



Technical Data

Product Name
 Pile-driven Steel Ground Mounting system
Application  Land
Material
 Steel and A2-70 hardware
Wind Load
 60 M/S
Snow Load
 1.0 KN/M²
Applicable Module
 Framed or Frameless
Module Orientation
 Portrait
Standard
 JISC8955:2017, GB50009-2012, GB50797-2012
Dimensions
 Customized
Warranty
 10 Years
Work life  25 Years



























Advantage

  • Strong compatibility
  • High cost performance
  • High-strength steel



Strength Analysis reference

Pile Driven HDG Steel Solar Structure 60m/S Ground Mount Racking 0 Pile Driven HDG Steel Solar Structure 60m/S Ground Mount Racking 1



Pile Driven HDG Steel Solar Structure 60m/S Ground Mount Racking 2
