Adjustable Aluminum Rooftop Solar Panel Mounting Structure Photovoltaic Wooden Beam Mount

Basic Information
Place of Origin: Jiangsu, China
Brand Name: LP SOLAR
Certification: ISO 9001, AS1170
Model Number: MRA1
Minimum Order Quantity: 500 sets
Price: Negotiable
Packaging Details: Carton or pallet
Delivery Time: 5~15 days
Payment Terms: L/C, T/T
Supply Ability: 100000 sets per month
Detail Information
Name: Adjustable Flat Tile Hook Material: SUS 304
Place Of Origin: Jiangsu, China Warranty: 10 Years
Certificate: ISO 9001 Application: Home
High Light:

adjustable rooftop solar panel mounting structure

,

aluminum rooftop solar panel mounting structure

,

Photovoltaic wooden beam mount


Product Description

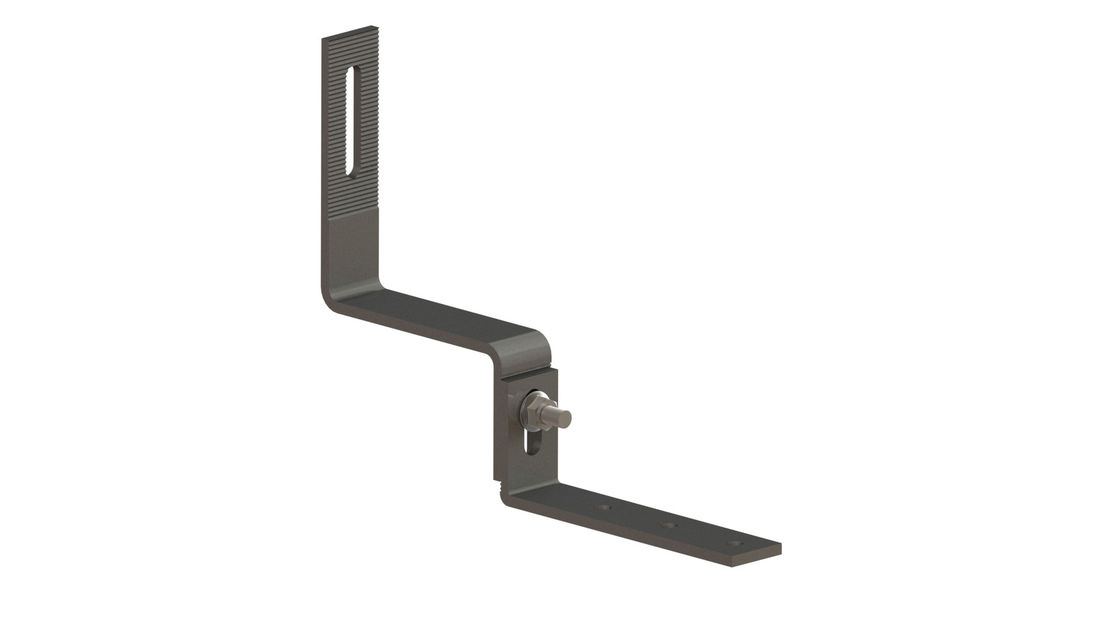

Adjustable Flat Tile Hook Solar Rooftop Wooden Beam Solar Energy Mounting Household Solar Photovoltaic System



It is particularly important to open a tile and understand the structure below, for example the spacing of purlin and the height of tiles during the field investigation. For some narrow wooden beams under the tile rooftop, we will choose some customized hooks to deal with them. The use of these customized hooks can avoid cutting and damage of tiles as much as possible, and ensure the integrity and waterproof of the roof to the maximum extent.



The material of stainless steel makes the whole product have good anti-corrosion performance. Although the hook is a customized product, it can be well matched with the rails of different brands. Therefore, it can be sold as a separate product.

Feature of photovoltaic tile roof hooks

1. Horizontal or vertical orientation array supports;

2. Fit for sloped rooftop mounting location;

3. 10 years warranty and 25 years life span designed;

4. Many holes on the bottom plate, for wooden or concrete.



As a PV enterprise, Lipu Metal has been focusing on the R&D, production and sales of solar mounting system and PV frames. Due to Lipu Metal has a professional design and development team, so it has obtained nearly 17 domestic and foreign product patents so far. Professional production and QC team, which is strictly controlling the quality from raw materials to finished products accordance with the ISO9001 international quality system standards.

Lipu Metal can not only produce conventional PV mounting system products and accessories, but also can offer the design which will meet the customized needs. According to the situation of different projects, Lipu Metal will provide matched mounting system solutions. From the beginning of purchasing from Lipu Metal, customers can enjoy a series of supporting services, including field investigation, measurement & calculation, design, installation support and after-sales service.


Technical Data

Product Name
 Customized Tile Hook for wooden beam
Application  Tile roofs
Material
 SUS 304
Wind Load
 Max 60 M/S
Snow Load
 Max 1.2 KN/M²
Applicable Module
 Framed or Frameless
Module Orientation
 Portrait or Landscape
Standard
 JISC8955:2017, GB50009-2012, GB50797-2012
Dimensions
 Customized
Warranty
 10 Years
Work life  25 Years


























Installation steps

1. Hook installation 2. Rail installation 3. Panel installation
