Shed Roof Waterproof Solar Carport Framed Panel Canopy Structure Photovoltaic System

Basic Information
Place of Origin: Jiangsu, China
Brand Name: LP SOLAR
Certification: ISO 9001
Model Number: CPT-waterproof
Minimum Order Quantity: 20KW
Price: Negotiable
Packaging Details: Carton or pallet
Delivery Time: 20~25 days
Payment Terms: L/C, T/T
Supply Ability: 30 Megawatts per month
Detail Information
Name: Waterproof Structure Material: High-strength Aluminum And A2-70 Bolts
Applications: Shed Or Roof Place Of Origin: Jiangsu, China
Certificate: ISO 9001 Warranty: 10 Years
High Light:

shed waterproof solar carport


roof waterproof solar carport


framed solar panel canopy

Product Description

Waterproof Structure Solar Photovoltaic System

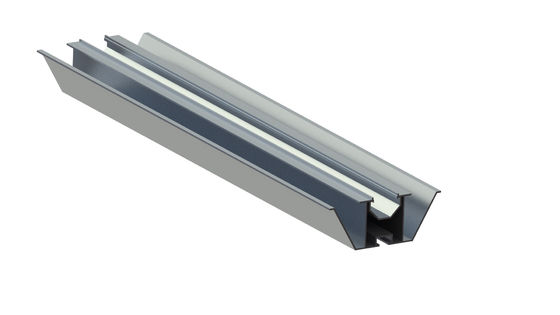

BIPV Waterproof structure are mainly used in household photovoltaic sheds, car sheds and are often used as building materials for roofs when renovating color steel tile roofs, so that panels can be directly installed on purlins without laying color steel tiles. BIPV waterproof structure includes: W-shaped waterproof rail, U-shaped channel, mid clamp, end clamp, cover plate, ridge cover plate and maintenance channel. In fact, W-shaped waterproof rail is the most critical part of waterproof photovoltaic structure.



  • Nonporous design: the whole BIPV waterproof structure adopts nonporous design to avoid water leakage. BIPV adopts longitudinal w waterproof rail, longitudinal cover plate and transverse U-shaped channel, so as to guide rainwater into the drainage channel, without secondary waterproof on the top surface.
  • Structural stability: the vertical w-shaped waterproof rail of the waterproof photovoltaic mounting system is connected with the beam through the hoop or L adapter, and the module is fixed by the clamp and bolt, which will make the whole photovoltaic system stable and firm.
  • Beautiful and waterproof: BIPV integrated roof and maintenance channel are integrated, the roof is flat and beautiful, and the waterproof effect is good.
  • Long service life: the waterproof photovoltaic structure adopts aluminum alloy as the main material, and the anti-corrosion performance is far higher than that of ordinary galvanized plate materials, so as to ensure that there is no need to replace the color steel tile during the whole operation period of the power station and reduce the later operation cost.


As a PV enterprise, Lipu Metal has been focusing on the R&D, production and sales of solar mounting system and PV frames. Due to Lipu Metal has a professional design and development team, so it has obtained nearly 17 domestic and foreign product patents so far. Professional production and QC team, which is strictly controlling the quality from raw materials to finished products accordance with the ISO9001 international quality system standards.

Lipu Metal can not only produce conventional PV mounting system products and accessories, but also can offer the design which will meet the customized needs. According to the situation of different projects, Lipu Metal will provide matched mounting system solutions. From the beginning of purchasing from Lipu Metal, customers can enjoy a series of supporting services, including field investigation, measurement & calculation, design, installation support and after-sales service.


Technical Data

Product Name
 Waterproof Structure Solar Photovoltaic System
Application  Shed or roof
 High-strength aluminum and A2-70 hardware
Wind Load
 50 M/S
Snow Load
 1.0 KN/M²
Applicable Module
Module Orientation
 Portrait or Landscape
 GB50009-2012, GB50797-2012
 10 Years
Work life  25 Years
